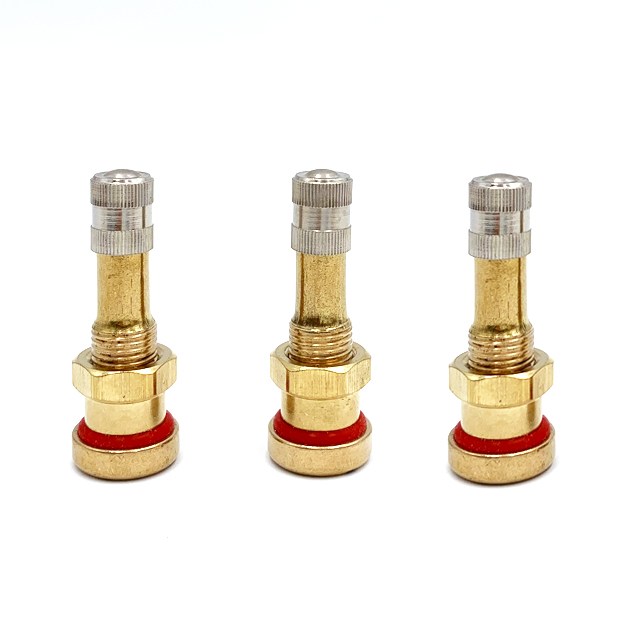

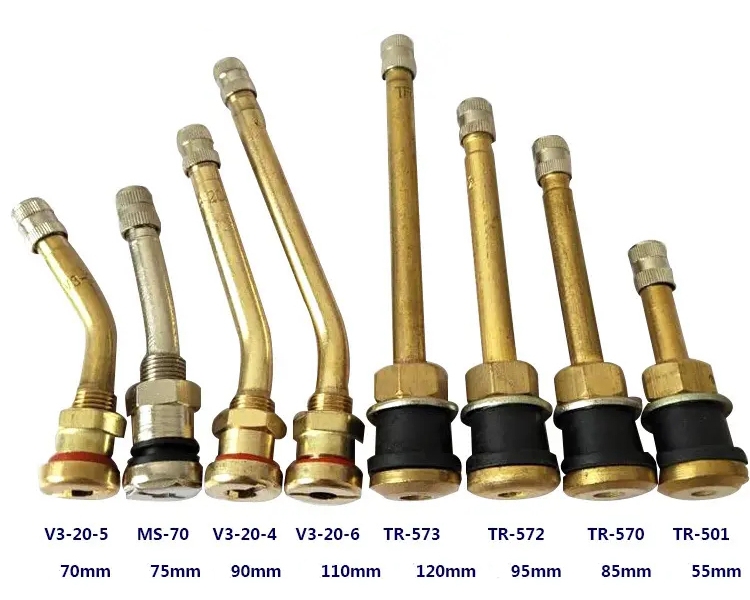

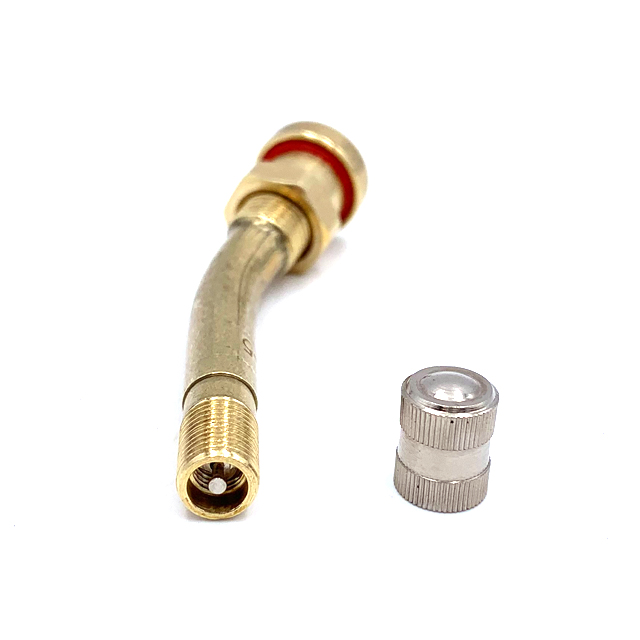

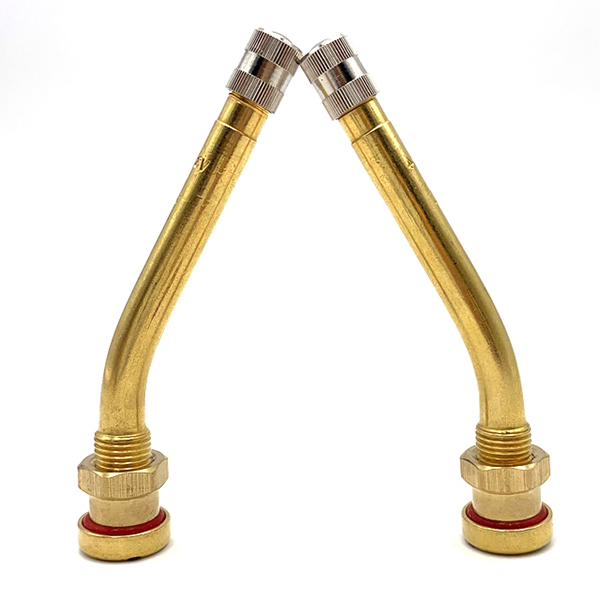

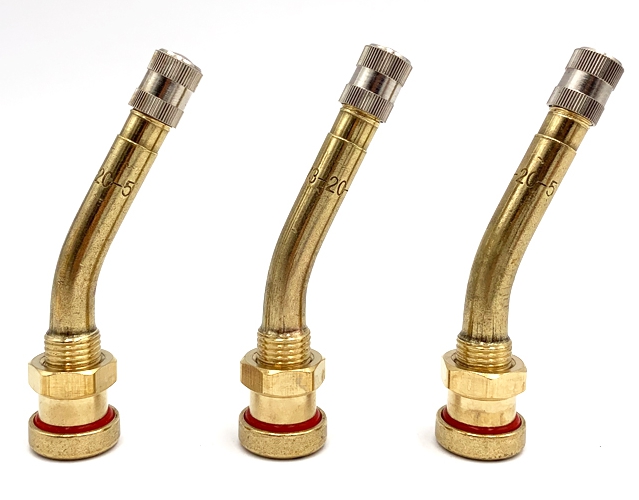

European Style O-Ring Seal Clamp-In Brass Truck Tire Valve Stems V3.20.6 V3.20.5 V3.20.4
European Style O-Ring Seal Clamp-In Brass Truck Tire Valve Stems V3.20.6 V3.20.5 V3.20.4
|
Code |
Rim Holes |
Eff.Length |
Bend Degree |
|
V3.20.1 |
Φ9.7/.39” |
41 mm |
|
|
V3.20.2 |
Φ9.7/.39” |
95 mm |
17.5° |
|
V3.20.3 |
Φ9.7/.39” |
87 mm |
|
|
V3.20.4 |
Φ9.7/.39” |
90 mm |
27° |
|
V3.20.5 |
Φ9.7/.39” |
70 mm |
27° |
|
V3.20.6 |
Φ9.7/.39” |
115 mm |
27° |
|
V3.20.7 |
Φ9.7/.39” |
80 mm |
27° |
Product Details:
Product Name: Bus V3.20.4 Tyre V3-20 V3 Series Clamp In Light Truck Tire Valve
TRA No.: V3.20.1,2,3,4,5,6,7,8
Material: #62 Brass stem
Quality Test: 100% leak tested
Grommet:Rg60
Core: Brass 9002
Cap: VC2 or VC3
Length: 80mm/3.150"
Fit for: Coach, Bus, Minibus, Heavy Truck, Truck, etc
Rim Hole: 5/8"/16mm
Specifications:
Brass Truck Tire Valve Stems caps 9.7mm Hole Aluminum Wheel Rim
Features:
Sturdy and durable, beautiful, no rust, easy to install
Truck tire valve stem V3.20.7
European Style O-Ring Seal Clamp-in Brass Valves V3.20.7
1.Material: #62Brass,diameter: 7.8mm
2.Parts with #9002 core,RG60 grommet,V9.07.2 nut and VC2 or VC3 cap
3.APPLICATION: for steel wheels with 0.625″ valve hole
4.Recommended torque at installation: 35-55 in-lbs
